Binding Screw Extensions - Silver / Nickel - 10mm
Binding Screw Extensions - Silver / Nickel - 10mm
| Quantity* | Discount | Price |
| min. 2 | 3 % | £4.84 GBP |
| min. 4 | 6 % | £4.69 GBP |
| min. 6 | 9 % | £4.54 GBP |
| min. 8 | 12 % | £4.39 GBP |
| min. 10 | 15 % | £4.24 GBP |
Inc 20% UK VAT, FREE UK Delivery
This item qualifies for free Royal Mail 48 shipping. Dispatch in 1-2 working days.
Couldn't load pickup availability
Binding Screw Extensions - Silver / Nickel - 10mm

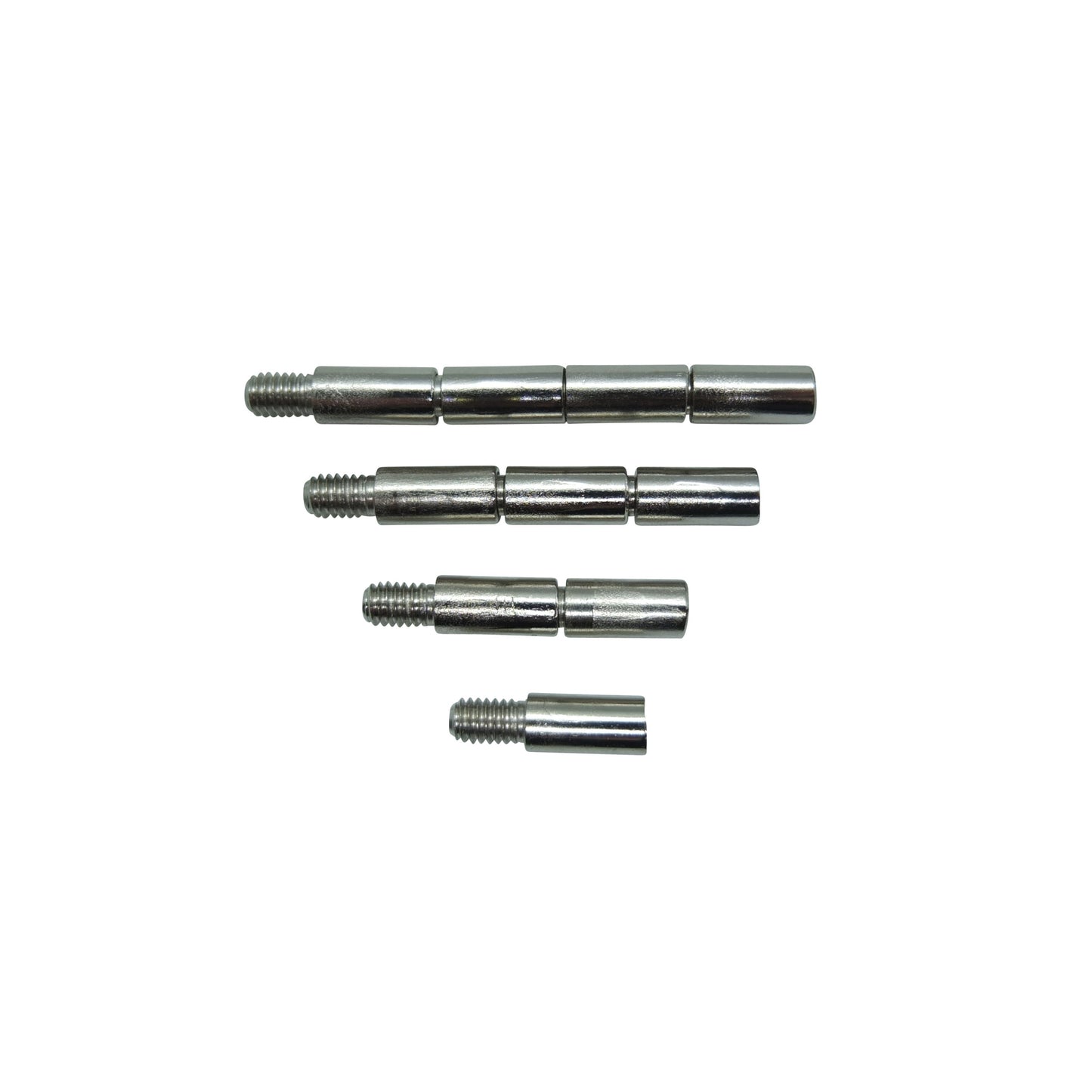

Compatible with all our binding screws from 7 mm length, these binding screw extensions can increase the capacity / thread of your screw post binding to create the capacity you need, without buying longer screws than the ones you might already have.
Easily increase the maximum capacity of your screw post binding
Simply screw the extension into the post on the one side and the screw into the extension on the other.
The extensions will increase the maximum capacity of your screw post binding by 10 mm. For example, a single 10 mm extension will increase a 7 mm screw post set to 17 mm maximum capacity. Perfect if you need a custom size length that isn't readily available.
As the extension won't be visible in the finished product, it can be combined with our copper or brass binding screws.
Product Specifications
| Size | Ø 5 mm |
| Length | 10 mm (1 cm or 0.39 in) |
| Screw thread | M4 |
| Material | Nickel-plated steel |
| Available colours | Silver (nickel) |
Book Binding Screw Size Chart
Not sure which size to choose? Use the chart below to find the right screw length based on the number of sheets you're binding with standard 80 gsm paper.
Each sheet of paper has two pages - a front and a back. So a 100-page document (printed double-sided) equals 50 sheets. The screw length refers to the inner post height between the caps, which determines how many sheets fit. If you only know the page count, use our Spine Width Calculator to estimate the correct length.
| Screw Length |
Approx. Sheet Capacity (80 gsm paper / 1 sheet ≈ 0.1 mm) |
Best for |
|---|---|---|
| 2 mm | 20 sheets / 40 pages | Swatch cards, tags, mini journals, paper crafts |
| 3.5 mm | 35 sheets / 70 pages | Small notebooks, restaurant menus, labels |
| 5 mm | 50 sheets / 100 pages | Sketchbooks, recipe books, leather bags, leather notebooks |
| 7 mm | 70 sheets / 140 pages | Craft journals, wedding albums, leather belts and pet collars |
| 10 mm | 100 sheets / 200 pages | Photo books, scrapbooks, thicker leather covers |
| 15 mm | 150 sheets / 300 pages | Project portfolios, artist lookbooks, DIY binders, sample swatches |
| 20 mm | 200 sheets / 400 pages | Large scrapbooks, custom albums |
Note: The sheet capacities and "best for" recommendations are approximate and can vary based on paper thickness and binding style. Always test with your specific materials to ensure a perfect fit.
